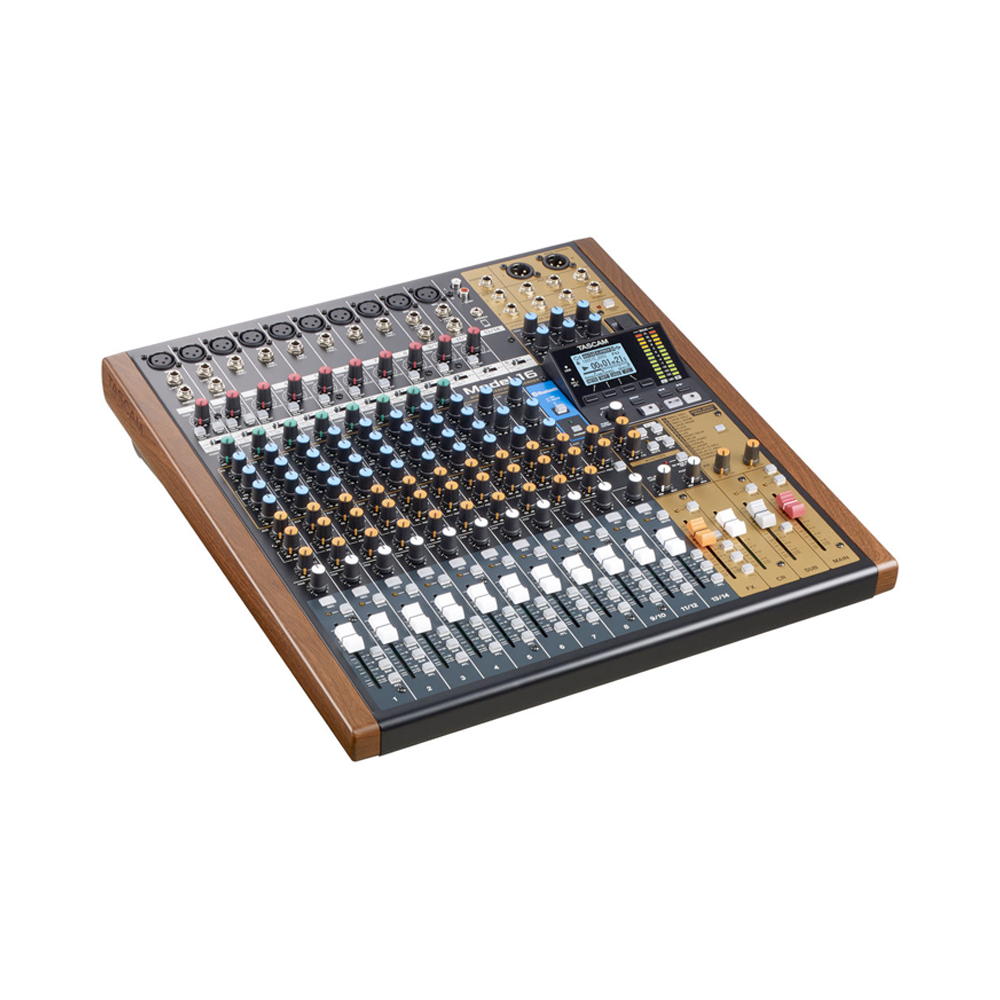

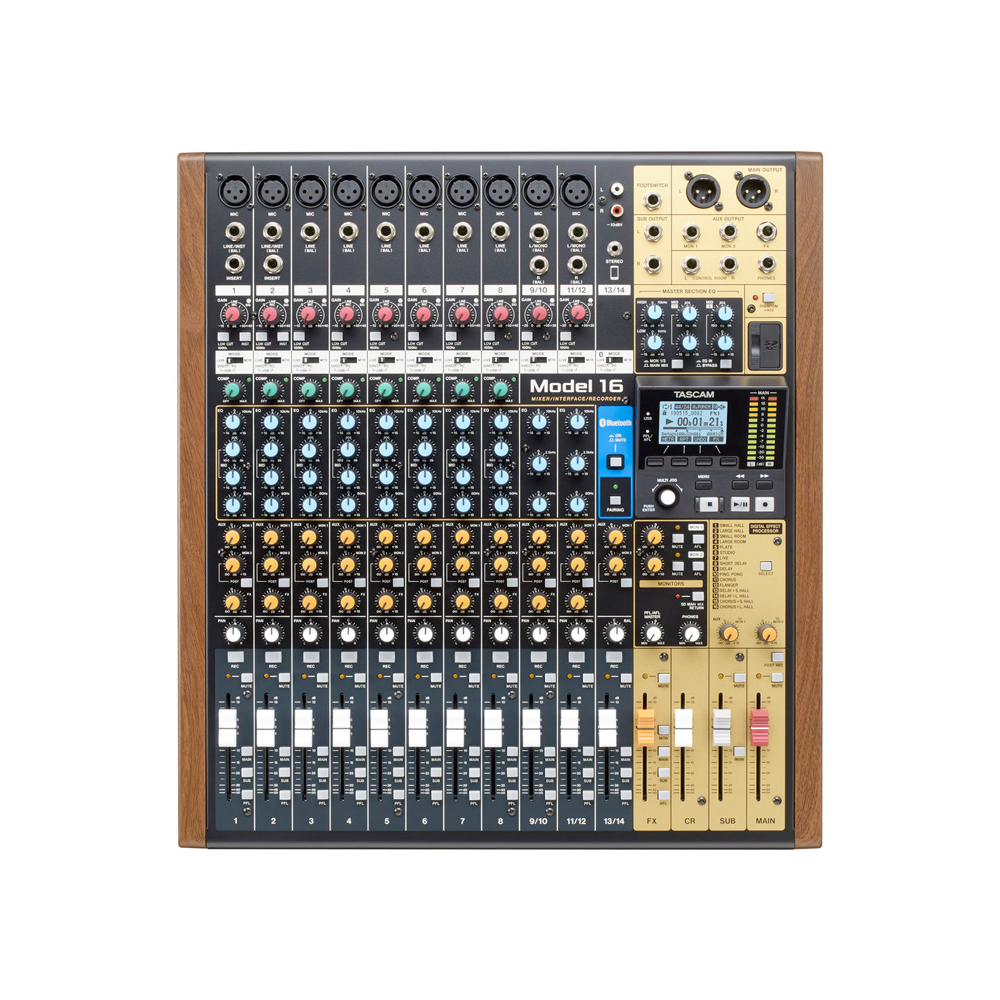

Tascam - Model 16 (Mixer - Interface & Recorder)
The Model 16 all-in-one mixer brings the flagship Model 24's powerful recording and mixing features and functionality to a new level of compactness and affordability, creating a full-featured small format mixer that combines the warmth of analog with a digital workflow.
The Model 16 is the perfect mixing solution for small format live performance, recording and production environments, featuring a multi-track recorder, USB audio interface, effects, comprehensive mixing and routing capabilities, and Bluetooth wireless.
Features include
• 16-track multi-track recorder (WAV, up to 48kHz/24-bit) to SD, SDHC and SDXC cards (Class 10 or higher required)
• Punch in/out capability (up to 8 tracks simultaneously)
• Built-in USB Audio Interface to send/receive (16-in/14-out) audio data to/from DAW
• 14 inputs (10 Monaural XLR/TRS balanced and 2 Stereo-paired TRS balanced)
• 10 mic Pre-amps utilizing TASCAM Ultra-HDDA Mic Pre-amp technology (CH 1 thru 8)
• Pre-amp Gain Controller with Signal/Over-load Indicator (CH 1 thru 12)
• Input Mode switch (LIVE/USB/MTR) per input channel
• 1-knob compressor (CH 1 thru 8)
• 3-band EQ with a sweep-able mid-range frequency (CH 1 thru 8)
• 100Hz Low-cut Filter (CH 1 thru 12)
• Phantom Power (+48V) for all XLR inputs
• 3 AUX Outputs (MON 1[pre], MON 2[pre/post], FX[post])
• Mute, MAIN/SUB, PLF switches per input channel
• Bluetooth® 5.0 input supporting both AAC and SBC codecs
• LINE Inputs via RCA Pin and 1/8″ Stereo Mini jacks (CH 13/14)
• Hi/Lo shelf, wide and narrow-Q semi-parametric EQs (for Main and SUB outputs)
• 16 TASCAM Effects like reverb, delay, chorus and flange
• MAIN Output via XLR balanced and SUB Output via TRS balanced connectors
• 12-segment LED Output Level Meters
• 1 Stereo Output for Control Room
• 1/4″ Stereo Headphone Output
• REMOTE connector for a Foot Switch (TASCAM RC-1F)
• Self-emitted buttons for key operations such as REC and Play for better status legibility
• Comprehensive simplified menu tree
• Multi Jog-dial for quick menu operation
• 19-inch rack mountable with optional Model 16 rackmount kit

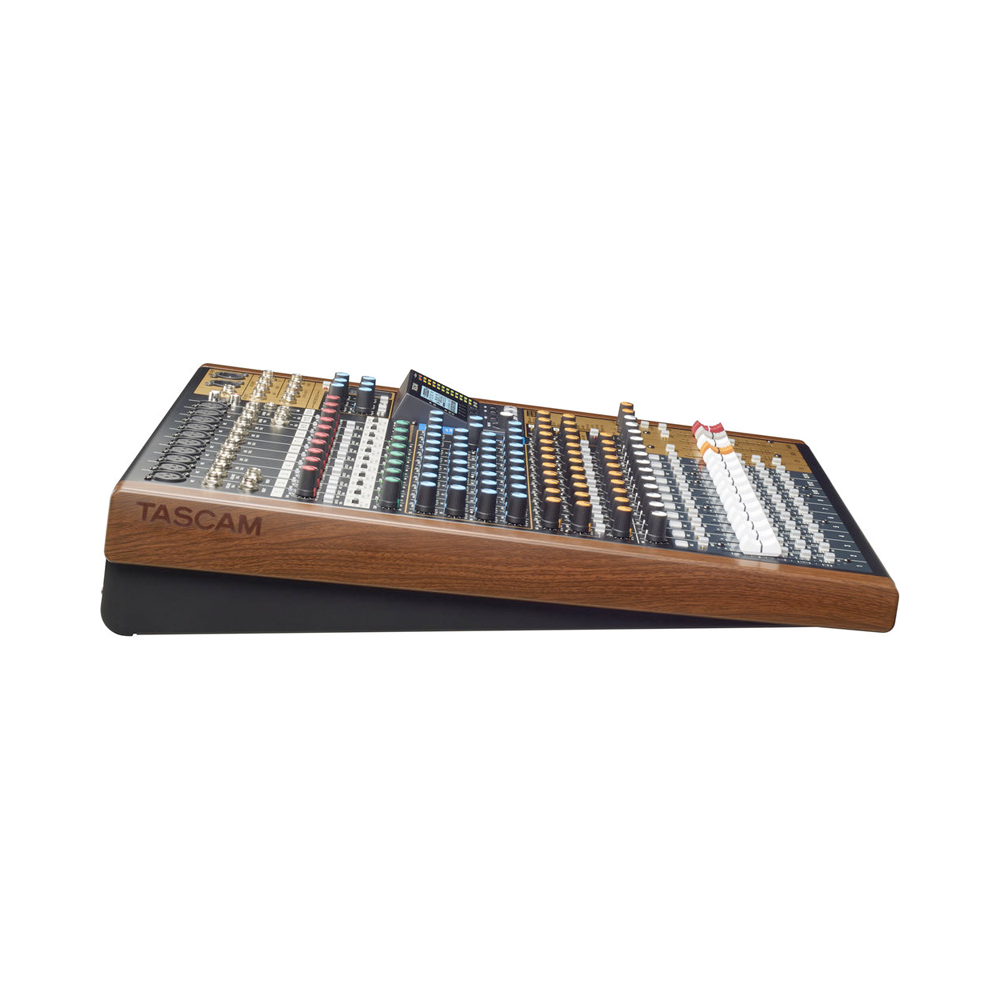

• FAUX wood Side Panels (Removable)
System Specifications
| System Requirements | macOS 10.12 or Later 2 GHz or Faster Dual-Core CPU 2 GB RAM 1280 x 800 Minimum Screen Resolution Core Audio Driver Available USB 2.0 Port Windows 7 SP1 or Later (32-/64-Bit) 2 GHz or Faster Dual-Core CPU 2 GB RAM 1280 x 800 Minimum Screen Resolution USB Audio Class 2.0, ASIO2.0, or WDM (MME) Driver Available USB 2.0 Port |
| Memory Card Support | SD: 512 MB to 2 GB SDHC: 4 GB to 32 GB SDXC: 64 GB to 512 GB Class 10 or Higher Required |
| File System | SD: FAT16 SDHC: FAT32 SDXC: exFAT |
| Audio File Formats Supported | WAV (BWF) |
| Bit Depth | 16-/24-Bit |
| Sampling Frequency | 44.1 or 48 kHz |
| Input Channels | 14 |
| USB Audio In/Out | Inputs: 16 Outputs: 14 Format: USB 2.0 High-Speed, Mass-Storage Class / USB Audio Class |
Connectivity
| Inputs | 10 x 3-Pin XLR Female Mic Inputs (Balanced) 12 x 1/4" TRS Female Line Inputs (Balanced) 2 x RCA Coaxial Line Inputs (One Stereo Pair, Unbalanced) 1 x 1/8" / 3.5 mm Stereo Mini Jack (Unbalanced) |
| Inserts | 2 x 1/4" TRS (Unbalanced, Tip = Send, Ring = Return, Sleeve = Ground) |
| Outputs | 2 x 3-Pin XLR Male Main Outputs (Balanced) 3 x 1/4" TRS Female Aux Outputs (Balanced) 2 x 1/4" TRS Female Control Room Outputs (Balanced) 2 x 1/4" TRS Female Sub Outputs (Balanced) 1 x 1/4" TRS Female Stereo Headphone Output (Unbalanced) |
| Footswitch Input | 1 x 1/4" TS |

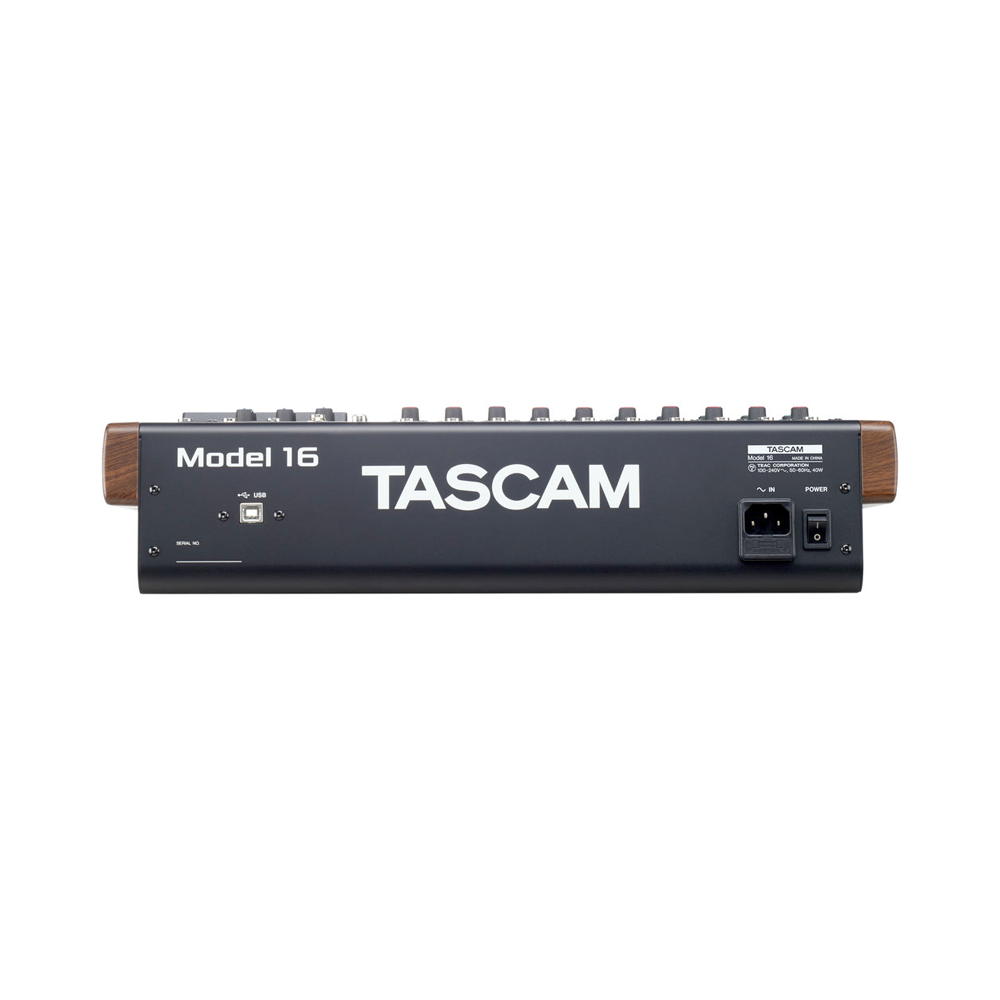

| Host Connection | 1 x USB 2.0 Type-B |
